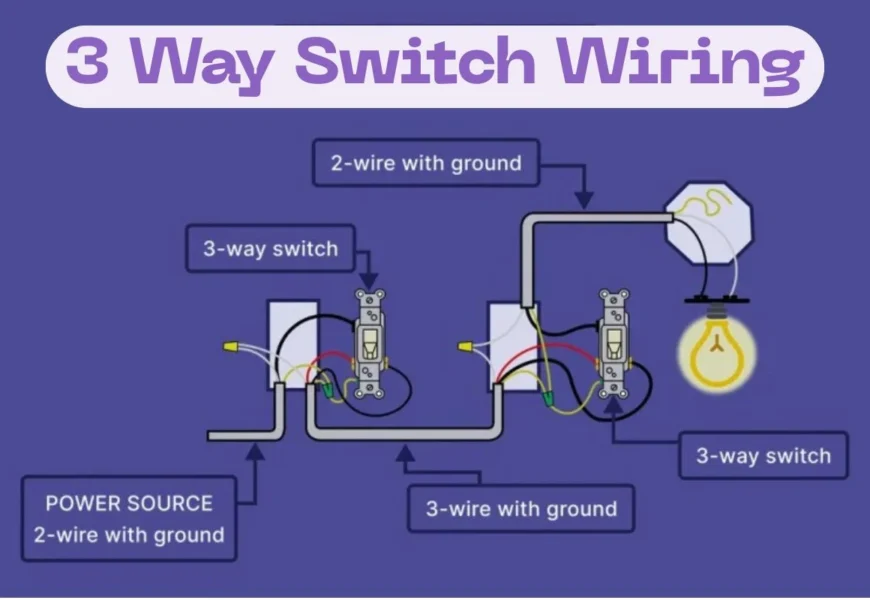

3 Way Switch Wiring – How to Install Properly

Introduction

Learning about 3 way switch wiring is one of the most useful skills for improving your home lighting setup. Unlike a single switch that only controls a light from one point, this system allows controlling lights from two locations, which is perfect for hallways, staircases, or large rooms. Many homeowners choose this setup because of the benefits of 3-way switches in home lighting, such as convenience, safety, and energy savings. Before starting, it is important to understand the parts, wires, and electrical safety tips for DIY wiring. With the right guide and step-by-step wiring instructions, you can safely install and enjoy reliable lighting control.

What Is a 3-Way Switch and Why Use It?

A 3-way switch installation makes it possible to control one light fixture from two different locations. For example, you can turn on a light at the bottom of the stairs and switch it off when you reach the top. This is one of the main benefits of 3-way switches in home lighting, as it improves both safety and convenience. Unlike a standard single-pole switch, a single-pole vs three-way switch system works differently: it does not depend on ON or OFF positions. Instead, traveler wires and a common terminal redirect electricity through different paths. This process, often shown in a 3 way switch wiring diagram, ensures smooth circuit interruption and completion while giving you better control over your lights.

How a 3-Way Switch Works

The mechanism is simple but smart. When you flip one switch, it changes the path of electricity through the traveler wires. The common terminal is the main point where power comes in or goes to the light fixture control. By flipping either switch, you complete or interrupt the circuit. This design improves safety at staircases with lighting control and increases convenience in long hallway lighting control. It also improves energy efficiency with 3-way switches, since you do not have to leave lights running when you move between floors or rooms.

Key Parts of a 3-Way Switch

Understanding the key parts of a 3 way switch wiring system is very important. Each component plays a role in proper function and safe wiring practices at home. When you know these parts, it becomes easier to follow step-by-step wiring instructions and avoid common mistakes.

• Ground Wire Connection: The green screw connects the ground wire, protecting against shocks by safely directing extra current into the earth.
• Traveler Terminals: Brass screws connect to traveler wires, allowing current to flow between switches for flexible light control.
• Common Terminal: The black screw carries power into the switch or sends it to the light fixture, making it the most crucial connection.

Understanding Wires and Cable Types

A proper home lighting setup with a 3 way switch wiring system needs several wires, each designed for a specific role. Knowing these wires helps you read an electrical wiring diagram correctly and follow safe wiring practices at home. If the wrong connections are made, it can cause circuit interruption and completion issues, shocks, or even fire hazards.

1. Black Wire: Connects to the common terminal and carries power from the source to the switch or light fixture control.
2. White Wire: Acts as the neutral and completes the return path for current in the electrical box installation.
3. Red Wire: Serves as one of the traveler wires, linking both switches for controlling lights from two locations.
4. Green or Bare Copper Wire: Used for the ground wire connection to protect against shocks and ensure compliance with local electrical codes.

Tools and Materials You’ll Need

Every DIY project requires the right setup, and this one is no different. The tools needed for wiring a 3-way switch are simple. A flathead and Phillips screwdriver, wire stripper, voltage tester safety tool, and needle-nose pliers will cover most of the work. These ensure you can cut, test, and secure wires properly. For materials, you’ll need new switches, wire nuts and electrical tape, a switch faceplate, and the right cables. When planning electrical box installation, always check for space. The box must fit the switch and wires without crowding. Buying quality parts ensures longer-lasting performance, reduces heat buildup, and supports breaker box safety compliance.

Also, read: Drapes for Sliding Glass Doors Ideas

Safety Precautions Before Starting

Every guide on DIY light switch wiring must start with electrical safety tips for DIY wiring. The most important step is to turn off power at the breaker box safety panel. After that, use a voltage tester safety device to confirm there is no electricity running. Never skip safety. In some case studies, homeowners forgot to cut the power and suffered electric shocks. Professionals always ensure compliance with local electrical codes, because that is the only way to guarantee a safe job.

Step 1: Remove the Old Switch

If you are replacing old switches with new ones, first remove the cover plate using a screwdriver. After this, gently pull the switch out of the box. You will see wires connected with screws and sometimes secured with wire nuts and electrical tape. Old homes may also have unusual wiring. If you cannot match it with a modern 3 way switch wiring diagram, note down the wire positions or take a photo before disconnecting them.

Step 2: Prepare and Label Wires

At this stage, how to install a 3-way light switch becomes easier if you prepare the wires properly. First, identify the common terminal wire, usually black. Then mark the traveler wires with a small piece of colored tape. Labeling prevents confusion during step-by-step wiring instructions. If wires are not marked, there is a high risk of wiring errors and troubleshooting later.

Step 3: Wiring the First 3-Way Switch

Now start by connecting ground, common, and traveler wires. Attach the black wire to the common terminal, and then connect the two traveler wires to the brass-colored screws. Finally, attach the ground to the green screw. This part is the foundation of the whole system. If the common and traveler are mixed, problems caused by wrong wiring will show up when you test the lights.

Step 4: Wiring the Second 3-Way Switch

The second switch is connected in the same way. The two traveler wires from the first switch connect to the traveler screws here. Then, the black wire goes to the common terminal, which leads to the light fixture control. The ground again connects to the green screw. With this done, both switches are now linked. At this stage, you have created a safe and flexible system for controlling lights from two locations.

Step 5: Connect to the Light Fixture

From the second switch, the common wire carries power to the light fixture control. This completes the circuit interruption and completion process. The neutral white wire from the circuit joins with the neutral wire of the light. This setup is most common in staircase lighting switches and hallway lighting control, but you can also use it for ceiling fan switch wiring or multiple light fixtures. If you want more, you can look at wiring a 3 way switch with 3 lights or 3 way switch wiring with multiple lights in advanced diagrams.

Step 6: Final Assembly and Testing

Now push the switches back into the electrical box installation, secure them, and attach the switch faceplate. After that, turn on power at the breaker box safety panel. Flip each switch to check if the light works correctly. If it does not, go back to check the wire nuts and electrical tape connections. Sometimes a loose traveler causes flickering or failure. If one switch works and the other doesn’t, or lights don’t toggle properly, revisit the wiring referencing a 3-way switch wiring diagram or wiring diagram for 3 way switch to spot errors.

Common Mistakes and Troubleshooting Tips

Many DIYers face issues with problems caused by wrong wiring, such as connecting the common terminal incorrectly, which makes the light work from only one switch. If the breaker trips, it often means a short circuit happened by crossing the neutral and hot wires. While smart light switch alternatives like a remote light switch or peel-and-stick smart switch exist, traditional 3-way wiring still offers the best reliability, safety, and control for most homes.

Conclusion

Mastering 3 way switch wiring gives you precise control over your home lighting setup, especially in staircases, hallways, or rooms with multiple entrances. Whether you follow a 3-way switch wiring diagram, plan for wiring a 3 way switch with multiple lights, or even use a 3 way dimmer switch wiring design, proper understanding of common, travelers, and ground wires is key. Always practice safe wiring practices at home, test with a voltage tester safety tool, and ensure breaker box safety compliance. A job done right is safer, more durable, and more satisfying.
